Results – Force loads

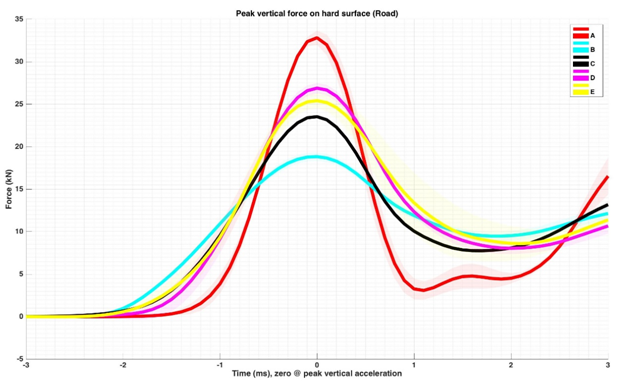

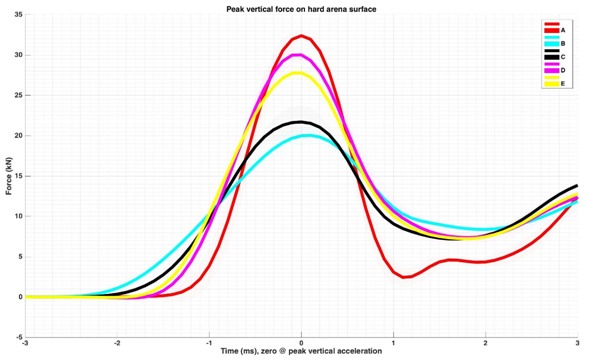

Peak vertical force parameter isthe measuredvertical load on the ‘hoof’ at impact.
The vertical force is given in [kN]. 30 kN can easier be understood as approx. 3.2 metric tons.
Peak values shown at zero time [ms] simulating first impact of the early landing/ touchdown phase.
A = Steel shoe (as reference)
B = Equine Fusion All Terrain – size 16 slim
C = Equine Fusion Ultimate – size 16 slim
D = Plastic 1 (other vendor hoof boot) – size equivalent
E = Plastic 2 (other vendor hoof boot) – size equivalent
![](https://assets-global.website-files.com/5db96db92067fa198b8a83fe/5dfb6cf207c87174fdcc12a9_graph1.png)
![](https://assets-global.website-files.com/5db96db92067fa198b8a83fe/5dfb6cf1b074181b2a4b5685_graph2.png)
![](https://assets-global.website-files.com/5db96db92067fa198b8a83fe/5dfb6cf1d19f9687d75866d7_graph3.png)
